David Miller Designs


VINTAGE 70’S STYLE CLASS A COMPRESSORS

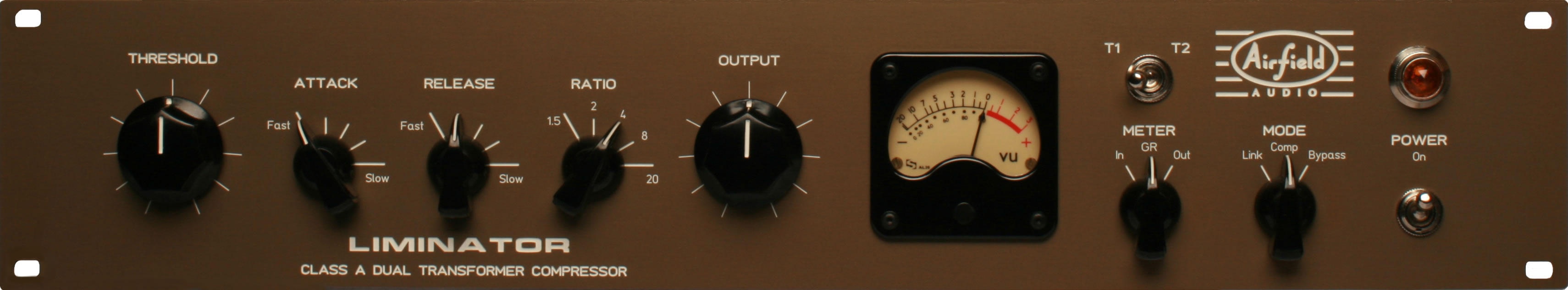

• Liminator - Class A Dual Transformer Mono Compressor


click photo for larger front and back panel views
view owner's manual

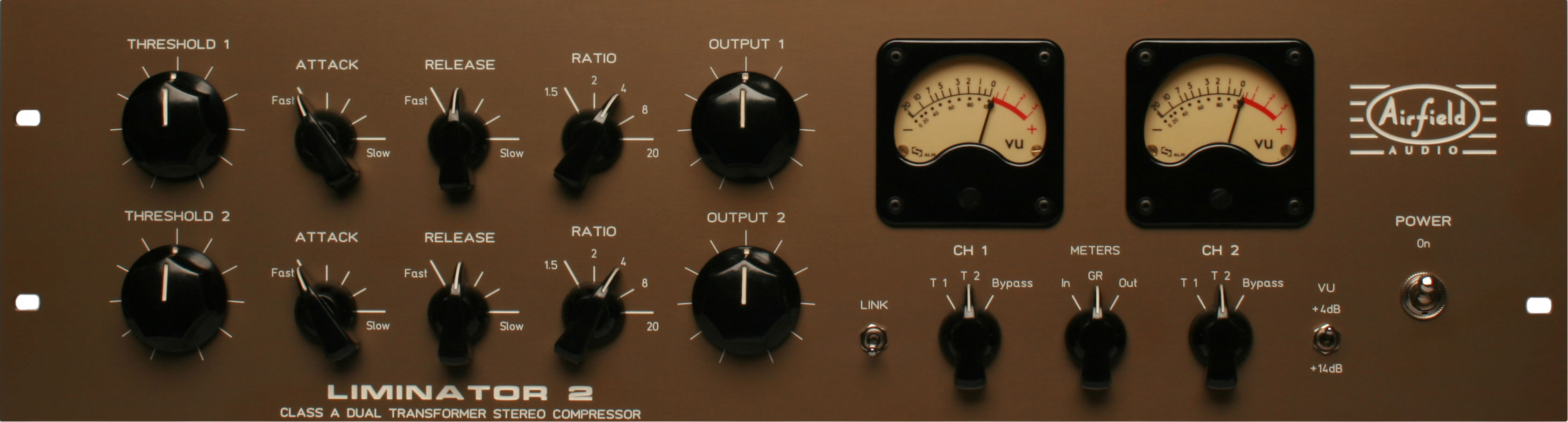

• Liminator 2 - Class A Dual Transformer Stereo Compressor


click photo for larger front and back panel views
view owner's manual

Features

• vintage David Miller design
• 70’s Class A electronics
• completely hand-assembled
• distortion-free Opto attenuator compressor system
• switchable input transformers - 2 modes
      1 - American Jensen transformers for a clean uncolored sound
      2 - British made Sowter transformers for extra rich musical harmonics
• 5 position step rotary switch on Attack, Release and Ratio
• continuously variable adjustment on Threshold and Output gain
• analog VU meter is switchable for: input and output plus gain reduction
• all front panel controls pots and switches are extremely high grade quality

• 0 - 20 dB gain reduction
• maximum output level of 32 dBu
• low THD + noise, less than .02%
• link switch (on both models) and a true relay bypass switch
• silver soldering on all connections
• circuit board made with 3 ounce copper
• transformer balanced XLR in and out connections
• +4 / +14 dBu meter level switch (on stereo version only)
• switchable 115/230 VAC operation

• 2 Year Limited Warranty
